Viq
Video Queuing Analysis Tool
Networked systems video characterization
Viq executes comprehensive live video parameter search to measure the performance of a networked system for one or multiple streams and identify weaknesses.
See the User Manual.
Figure 1: Viq analysis of maximum bitrate and number of streams.
Usage
Figure 2: Viq frame-by-frame analysis of multiple streams in the built-in GUI. Here we can see several artifacts at once: freezes (positive slope), video sped up (negative slope), and lag (a constant offset).
Viq is a single binary with a client-server architecture, composed of a sender
and a receiver bundled in the same viq binary.
viq receiver --initial-queue-depth 1 --fps 20
viq sender localhost:4462 --fps 60 --i-period 20 --i-size-multiplier 5 --bitrate 3.5M
Viq also comes bundled with parameter-sweep scripts to quickly get a sense of the general performance of a system:
scripts/sweep-receiver.sh
scripts/sweep-sender.sh
Complex and dynamic encoder behavior can also be scripted, for example, unscheduled I-frames:
viq sender localhost:4462\
--fps 60\
--script-frame-table scripts/patterns/random-burst.koto\
--bitrate 3.5M

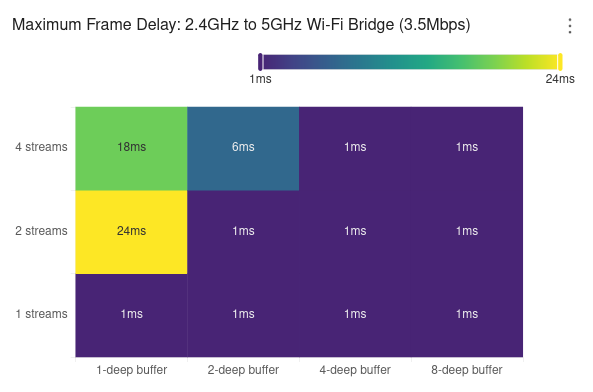

Figure 3: Using Viq to find required buffer depth for a stable video link.
Downloads
| Release | Platform | Link |
|---|---|---|
| [LATEST] 1.5.1 | aarch64-unknown-linux-gnu | Download |
| [LATEST] 1.5.1 | aarch64-unknown-linux-musl | Download |
| [LATEST] 1.5.1 | x86_64-unknown-linux-gnu | Download |
| [LATEST] 1.5.1 | x86_64-pc-windows-gnu | Download |
| 1.4.0 | aarch64-unknown-linux-gnu | Download |
| 1.4.0 | aarch64-unknown-linux-musl | Download |
| 1.4.0 | x86_64-unknown-linux-gnu | Download |
| 1.4.0 | x86_64-pc-windows-gnu | Download |
| 1.3.0 | aarch64-unknown-linux-gnu | Download |
| 1.3.0 | aarch64-unknown-linux-musl | Download |
| 1.3.0 | x86_64-unknown-linux-gnu | Download |
| 1.3.0 | x86_64-pc-windows-gnu | Download |
| 1.2.0 | aarch64-unknown-linux-gnu | Download |
| 1.2.0 | aarch64-unknown-linux-musl | Download |
| 1.2.0 | x86_64-unknown-linux-gnu | Download |
| 1.2.0 | x86_64-pc-windows-gnu | Download |
| 1.1.0 | aarch64-unknown-linux-gnu | Download |
| 1.1.0 | aarch64-unknown-linux-musl | Download |
| 1.1.0 | x86_64-unknown-linux-gnu | Download |
| 1.1.0 | x86_64-pc-windows-gnu | Download |
| 1.0.0 | aarch64-unknown-linux-gnu | Download |
| 1.0.0 | aarch64-unknown-linux-musl | Download |
| 1.0.0 | x86_64-unknown-linux-gnu | Download |
| 1.0.0 | x86_64-pc-windows-gnu | Download |
Release Notes
1.5.1
- Fix incorrect throughput when using the model frame table.
- Increase maximum frame size.
1.5.0
- Further threading and responsiveness improvements.
- Clickable plots.
- Receiver configuration via GUI.
- Frames over the network tagged with frame number.
- Wireshark frame decoding.
1.4.0
Built in web GUI. Large threading improvements for better timings and power consumption.
1.3.0
Improved --bitrate precision.
Support for complex scripted traffic profiles.
1.2.0
Bug-fixes.
Binary unit multipliers support.
1.1.0
Introduces file frame tables and several improvements to parameter ergonomics and naming.
1.0.0
First public release.
Introduces the Viq model and procedural frame tables.
